#1
04-16-2013, 04:43 PM
|
||||
|
||||
|
Building a GSG 22 companion to a 1911, 45 ACP
I started this project as a build for a Spl Ops guy to create an open carry 1911 45 pistol out of his 1950s 2400 bullseye conversion, big old style Bomar cut and all. This got pretty much done, feeds empties etc., and then near the end he asked if I could take a GSG, which I had never seen before, and turn it into a companion. By companion I mean, accurate, extended slide release, extended ambi safety, flat main spring housing, mag well, checkered front strap with adjustable sights, etc. So after being told that 90% of the parts were supposed to match up with a 1911, I said OK, I will give it a try.

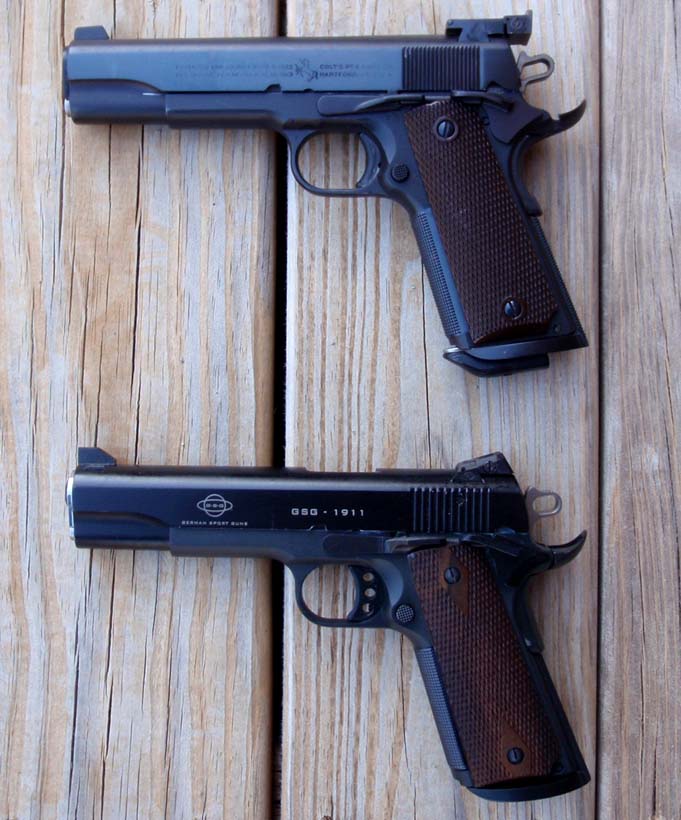

This is what it looks like finished, after polishing down the pin on the slide release to .090 so it would fit and function, replacing the aluminum safety, replacing the guide rod and bushing, rear and front sight with STI sights, replacing the main spring housing with a S & A, replacing the sear, changing it to a series 70 from an 80 (removing 5 parts), inserting a .060 spacer, replacing the firing pin with a hand made strong pin and setting the trigger to stop its wobble in the slot. Of course one of the things that did not fit were the dovetail slots which I had to recut by hand to fit the Novak bases of the STI sights. The bright spot on the 1911 (top gun) is just a light reflection. He liked the original GI trigger and its pull length. The 1911 has a 3.75 pound trigger and the GSG has a 4 pound trigger. The original GSG firing pin shattered at the thin legs while dry firing it on an empty case, it was so hard it had crystals in the metal. Ed
__________________
The three Rs: Respect for self; Respect for others; and responsibility for all your actions. "Is life so dear, or peace so sweet, as to be purchased at the price of chains and slavery? Forbid it, almighty God! I know not what course others may take, but as for me, give me liberty, or give me death!"
|
|
#2
04-17-2013, 09:04 AM
|
|||
|
|||
|
Beautiful work!
__________________
“May we never confuse honest dissent with disloyal subversion.” Dwight D. Eisenhower "If the freedom of speech is taken away, then dumb and silent we may be led, like sheep to the slaughter" George Washington Jack@huntchat.com
|
|
#3
05-15-2013, 10:49 AM
|
||||
|
||||
|
The spl ops troop I built the 1911s for called said he took the guns out to the range, they both shot quarter size groups without a hiccup. He was ecstatic, which was my pay for the work done for one of our GIs. The funny thing is that the shop where he bought the 45 thought the gun was trashed because of the old style Bomar rear plus the loose front sight and sold him the gun for $325.
I was very glad to put the old girl back to full up function as a carry gun. Ed
